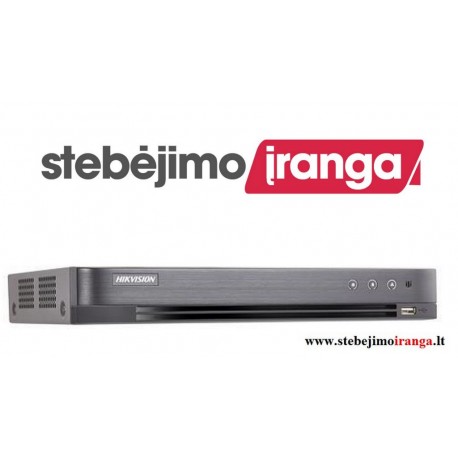

Hikvision DS-7216HQHI-K2

Model

DS-7204HQHI-K1

DS-7208HQHI-K1

DS-7216HQHI-K1

Video/Audio input

Video

compression

H.265+/H.265/H.264+/H.264

Analog video input

4-ch

8-ch

16-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDTVI input

3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25

Note: The 3 MP signal input is only available for channel 1 of DS-7204HQHI-K1, for channel 1/2 of DS-7208HQHI-K1, and for channel 1/2/3/4 of DS-7216HQHI-K1.

AHD input

1080p25, 1080p30, 720p25, 720p30

HDCVI input

1080p25, 1080p30, 720p25, 720p30

CVBS input

PAL/NTSC

IP video input

1-ch

2-ch

2-ch

Up to 4 MP resolution

Supports H.265+/H.265/H.264+/H.264 IP cameras

Audio

compression

G.711u

Audio input

1-ch, RCA (2.0 Vp-p, 1 KΩ)

Video/Audio output

CVBS output

1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480

HDMI/VGA

output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 ×

720/60Hz, 1024 × 768/60Hz

VGA: 1-ch, 1920 × 1080/60Hz, 1280 ×

1024/60Hz, 1280 ×

720/60Hz, 1024 × 768/60Hz HDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 ×

1440)/60Hz, 1920 ×

1080/60Hz, 1280 ×

1024/60Hz, 1280 ×

720/60Hz, 1024 × 768/60Hz

Encoding resolution

When 1080p Lite mode not enabled: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode enabled: 3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF

Frame rate

Main stream:

When 1080p Lite mode not enabled:

For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps

For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

When 1080p Lite mode enabled: 3 MP@15fps

1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

Sub-stream:

WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)

Video bit rate

32 Kbps to 6 Mbps

Audio output

1-ch, RCA (Linear, 1 KΩ)

Audio bit rate

64 Kbps

Dual stream

Support

Stream type

Video, Video & Audio

Synchronous playback

4-ch

8-ch

16-ch

Network management

Remote connections

128

Network

protocols

TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF

Hard disk

SATA

1 SATA interface

Capacity

Up to 6 TB capacity for each disk

External interface

Two-way audio input

1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the 1st audio input)

Network interface

1, RJ45 10M/100M self-adaptive Ethernet interface

1, RJ45 10M/100M/1000M

self-adaptive Ethernet interface

USB interface

2 × USB 2.0

Front panel: 1 × USB 2.0

Rear panel: 1 × USB 3.0

Serial interface

RS-485 (half-duplex)

General

Power supply

12 VDC

Consumption (without HDD)

≤ 6 W

≤ 7.5 W

≤ 25 W

Working

temperature

-10 ºC to +55 ºC (+14 ºF to +131 ºF)

Working

humidity

10% to 90%

Dimensions

(W × D × H)

315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)

Weight (without HDD)

≤ 1.16 kg (2.6 lb)

≤ 1.78 kg (3.9 lb)

≤ 2 kg (4.4 lb)
